12" Indoor / Outdoor System with Transformer (90° x 40°)
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description

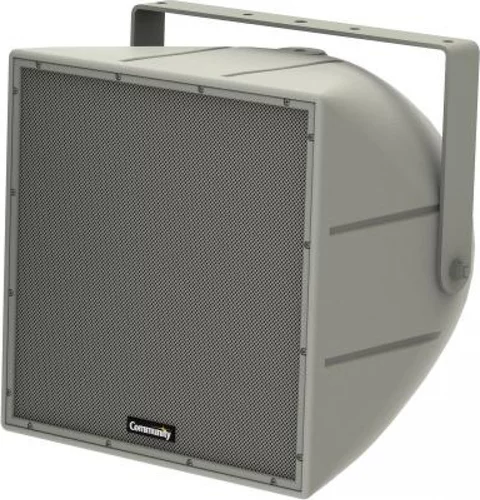

The R.5-94TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five- year limited product warranty; fifteen-year enclosure warranty.
Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 125 Hz to 10 kHz (±4 dB)
Max Input Ratings: 200W, 70V/100V
Maximum Output on 200W Tap: 125 dB SPL
Nominal Impedance: 25 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) 3/8-16 rigging points
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap
Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 125 Hz to 10 kHz (±4 dB)
Max Input Ratings: 200W, 70V/100V
Maximum Output on 200W Tap: 125 dB SPL
Nominal Impedance: 25 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) 3/8-16 rigging points
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap
Product Features
- Multi-tap 200W autoformer for 70V and 100V inputs
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- DYNA-TECH protection circuitry
