8" Indoor / Outdoor Horn Loaded System with Transformer (Gray)

No Reviews Yet Submit a Review UPC: 617174010812 Model Number: R.25-94TZ Brand: Community Pro
8" Indoor / Outdoor Horn Loaded System with Transformer (Gray)
bold remove Item Unavailable

To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.

Product Description

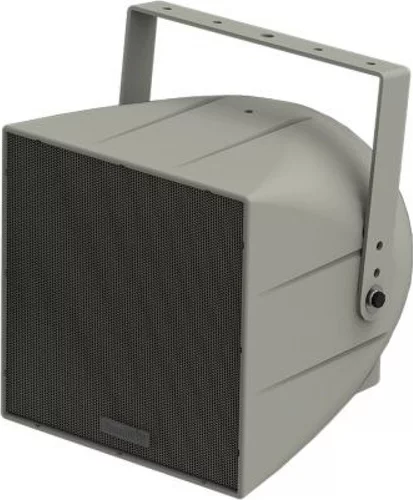

The R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.25-94Z has an 8-inch (203mm) cone LF driver and a ¾-inch (20 mm) exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver.

Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 160 Hz to 12.5 kHz (±3 dB)
Max Input Ratings: 200W, 70V/100V
Maximum Output: 120 dB SPL / 127 dB SPL (peak)
200W Nominal Impedance: 25 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) rigging points (M8 hardware), 1-3/8” pole mount socket
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap

Product Features

  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • High fidelity, all horn loaded
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • 200W, 70V autoformer
