B-Tech BT8432/BUniversal Flat Screen Wall Mou
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description

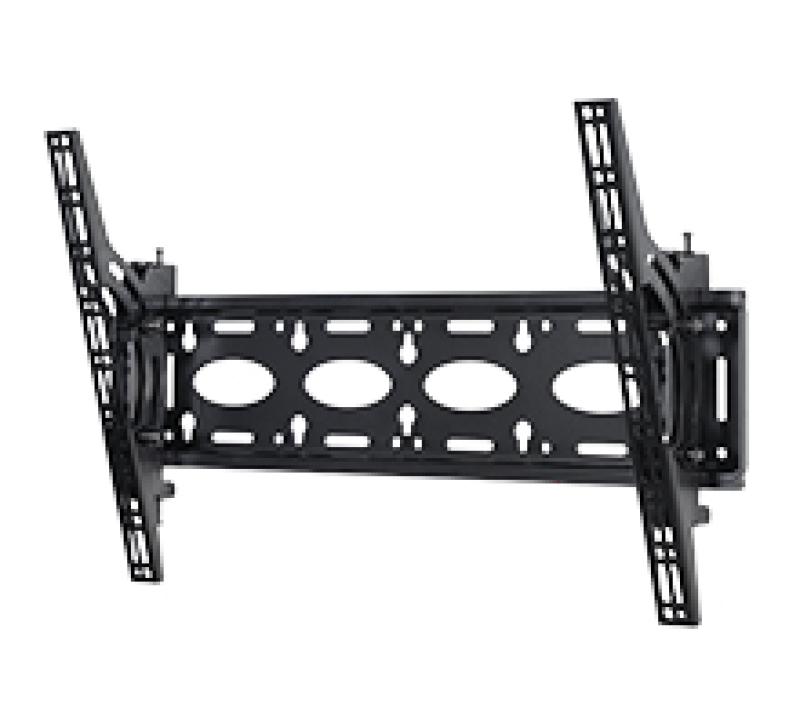

Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique 'Torsion-Tilt' mechanism which allows easy tilt adjustment of the screen up to +/-15. Also suitable for pole mounting using B-Tech's Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
Features
- Unique 'Torsion-tilt' mechanism for easy tilt adjustment
- Lateral adjustment of screen once mounted
- Levelling screws allow adjustment of screen height
- Security locking screws and Allen key to prevent unauthorized screen removal
- Collar compatible ideal for pole mounting
- Simple 'hook-on' installation with all mounting hardware included
Specifications
- Recommended screen size up to 80" (203cm)
- Max load 70kg+ (154lbs)
- VESA(R) compatibility up to 600 x 400
- Universal fixings up to 677 x 400mm
- Tilt +/-15
- Distance from wall (flat) 81mm (3.2")
- Distance from wall (full tilt) 148mm (5.8")
+Please note the maximum load is reduced to 50kg when pole mounted
