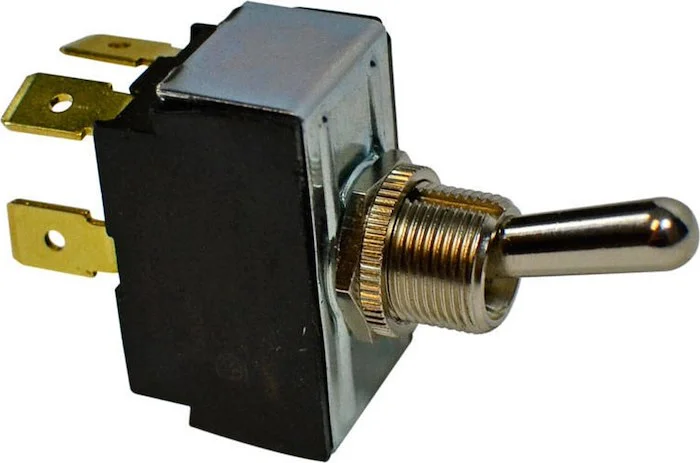

Carling DPST 3 Position Toggle Switch (On - Standby - Off)
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description
Carling, 2GG51-73 DPST 3 position toggle switch (on-stby-off) can be used as a single style power switch where both standby and power can be activated in separate positions. In the "down" position both single pole switches are Off. In the "middle" position one of the single pole switches is switched to On. In the "up" position both switches are On.
Type: Toggle Switch Version: DPST, OFF - ON (A) / Off (B) - ON (A) / ON (B) Rating: 10A @ 250V / 15A @ 125V Insulation resistance: 100MO min. Dielectric strength: 1000V min. Operating Life: 25.000 cycles Drill: 12 mm Termination Style: solder-lugs
Type: Toggle Switch Version: DPST, OFF - ON (A) / Off (B) - ON (A) / ON (B) Rating: 10A @ 250V / 15A @ 125V Insulation resistance: 100MO min. Dielectric strength: 1000V min. Operating Life: 25.000 cycles Drill: 12 mm Termination Style: solder-lugs
