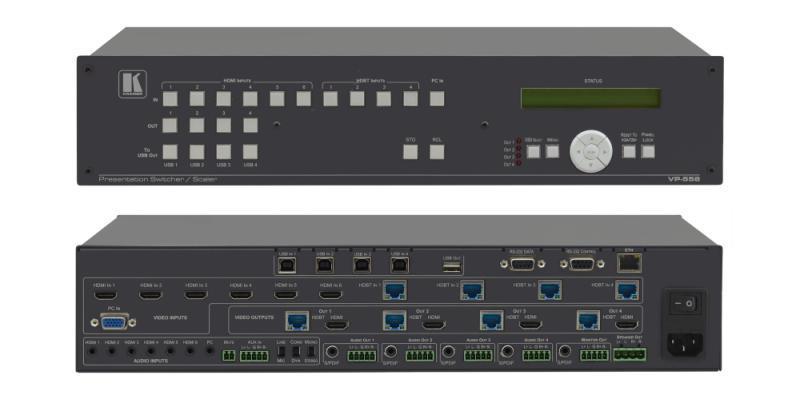

Kramer VP-55811x4 Presentation Switcher/Sca

The VP?558 is a high?performance 11x4 ProScale presentation scaler/matrix switcher that can output four independent scaled images. Each output includes an HDMI and HDBaseT connector. The product supports analog, digital and embedded audio. VP?558 features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. VP?558 also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and audio DSP features.

•  Pix-Perfect(TM) Scaling Technology - Kramer's precision pixel mapping and high-quality full up - and down-scaling technology.
•  HDTV Compatible.
•  HDCP Compliance - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass to HDCP compliant outputs.
•  Output Resolutions - Up to 1080p/WUXGA.
•  System Range - For the HDBT inputs and outputs - up to 70m (230ft).
•  Cables - For optimum range and performance using HDBaseT(TM), use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
•  4x1 USB Switcher - Can be set to follow the switching of the video layer or as an independent switcher.
•  OSD (On Screen Display) - For easy setup and adjustment, accessible via the front panel buttons.
•  Audio DSP Features.
•  Input/Output Audio Level Adjustment.
•  Selectable Microphone Talkover or Mix Modes.
•  Analog & Embedded Audio Support - For inputs and outputs.
•  Built-in Power Amplifier - 2x10W power amplifier with speaker outputs on a 4-pin terminal block connector.
•  Multiple Aspect Ratio Selections.
•  Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
•  Built-in Web Pages - For easy setup and remote control.
•  Firmware Upgrade via the Ethernet
•  Multiple Control Options - Front panel buttons with OSD, RS-232, Ethernet and built-in Web pages.
