Kramer VSM-4X4A
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description

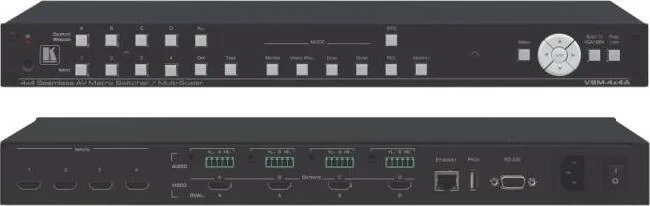

VSM4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multiviewers. The unit enables switching between inputs with a clean video cut (frametoframe switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes perport HDCP and EDID settings.
Features
- PixPerfect(TM) Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
- HDTV Compatible.
- HDCP Compliant.
- 4 HDMI Inputs & 4 Scaled HDMI Outputs.
- Audio - 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
- Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.
- Bezel Correction Options - In video wall mode.
- Matrix Switching Modes - Seamless switching mode (zero-time video cuts), or fade-through-black mode (enabling independent output resolutions).
- Constant Output Sync - For all modes of operation.
- HDMI Support - Deep Color, Dolby Digital Plus, DTS, DTS-HD(R), LPCM 2CH/6CH/8CH, AC3.
- Per Port HDCP and EDID Settings
- Input Resolution Range - VGA to WUXGA and 480i to 1080p.
- Output Resolution Range - 480p to 1080p.
- Multiple Aspect Ratio Selections - Full, 43, 169 and best fit.
- Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
- Front Panel Control - Operation mode, TAKE button and menu buttons.
- 4 Preset Memory Locations - For each operation mode for quick access to common IN-OUT configurations.
- Front Panel Lockout.
- Non-Volatile Memory - Saves final settings.
- Additional Internal Memory - Supports larger firmware code.
- Firmware Upgrade - Via Ethernet or the program mini USB connector.
- Varied Control Options - Front panel buttons, RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller; infrared remote control transmitter with OSD (on-screen display), Ethernet with built-in web pages.
