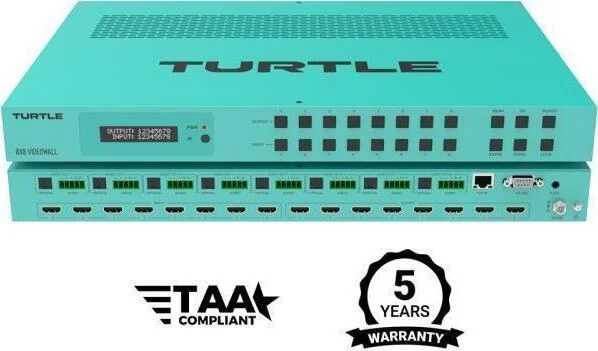

Turtle AV TAV-MX88VW4K60 444 8x8 Video Wall, Mat

The Turtle 8x8 Video Wall can be configured as a 1x4 Video Wall, 8x8 Matrix, or 1x4 Multiview. Each input and output supports up to 4K60, 444 video via HDMI 2.0 with seamless scaling, and audio embedding and de-embedding via optical or line in/out over Phonex connectors. With WebGUI controls and API integration, it's the ultimate versatile solution for professional AV environments.

Key Features

• 4K60 444. 18Gbps HDMI 2.0.
• 8x8 Video Wall, Matrix, Multivew all in one
• Audio Embedding / De-embedding
• API Support
• Seamless switching
• HDCP 2.2. Advanced EDID management.
• Easy set up via WebGUI
• TAA Compliant
• 5 Year Warranty

4K60 444. 18Gbps HDMI 2.0

Experience uncompromising video quality with full 4K60 resolution, HDR support, and an 18Gbps HDMI 2.0 pipeline for vibrant, crystal-clear visuals.

Video Wall, Matrix, Multiview - All in One

Switch effortlessly between a Video Wall, 8x8 Matrix, or Multiview configurations-all in a single, powerful device tailored to your needs.

Extremely Powerful Video Wall

The Turtle 8x8 Video Wall offers a wide range of configurations. Build impressive 4x4 walls, dynamic 2x2 grids, or large 3x3 setups. Create unique layouts like 1x8 panoramas, 2x4 grids, or combine zones for mixed displays. With support for a variety of modes, this system provides the flexibility you need for command centers, public spaces, live events, and more. All in stunning 4K60 resolution.

Dual Independent Multiview

Two is better than one. Video Wall Display offers dual Multiview outputs each with up to 16 customizable layouts on a single screen for monitoring, presentations, or control rooms. Effortlessly switch between layouts using the WebGUI, API, or front panel controls.

8x8 Matrix

Route any input to any output or create multiple simultaneous configurations with the robust 8x8 Matrix functionality.

Audio Matrix

The Turtle 8x8 Video Wall features 8 L/R balanced audio outputs with an intuitive Audio Matrix mode. Easily route extracted audio by selecting outputs and assigning sources, while toggling channels on or off.

Audio Embedding / De-Embedding

Seamlessly embed or de-embed audio as needed via the Optical or Phoenix connectors for total flexibility in any AV setup.

Seamless Switching

Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.

Scaling

Individually scale each source with precision, supporting resolutions up to 4K60 444 and each output has individual downscaling control.

Easy Setup via WebGUI or Front Buttons

Set up and manage configurations effortlessly using the intuitive WebGUI, or go hands-on with the front panel controls.

API Support

Integrate easily with third-party systems via robust API support for advanced control and automation.

HDCP 2.2

Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices.

Advanced EDID Management

Manage EDID with ease using 12 factory-defined settings, 2 user-defined modes, and 4 copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.
