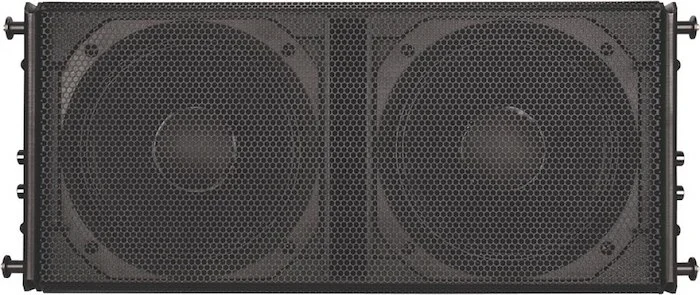

WideLine-8 Series Line Array Element
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description
QSC's WideLine-8 packs full size line array performance into an ultra compact package measuring less than 20" (508 mm) wide and 9" (229 mm) high. The WideLine-8 applies to audio the classic hot rod, high performance formula – putting the most horsepower available into the smallest chassis possible.
Each tri-amplified WideLine-8 element uses a pair of high-power, neodymium magnet, 8" low-frequency drivers. Both cover low frequencies while only one extends into the midrange, thus maintaining horizontal dispersion control at crossover. High frequencies are handled by a premium, 3" diaphragm, neodymium compression driver mounted to QSC's patented, 140° multiple aperture diffraction waveguide. WideLine signature wide coverage delivers a broader stereo image, reduces the need for supplemental fill speakers and allows more placement options.
The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source with minimal discontinuities between adjacent elements resulting in greatly reduced destructive interaction.
Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and coated in an environmentally friendly, waterborne polymer finish that is field repairable. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminum.
An elegantly simple 4-point suspension system combined with lightweight, compact size and excellent handling ergonomics mean that a one person crew can easily deploy an array. A single AF3082-L array frame suspends up to twelve line array elements or up to twelve line array elements plus four subwoofers. The WideLine-8 system is equally at home in the air or ground stacked.
Special attention is given to ground-stacked applications. The WideLine-8 sub suspension system includes a unique provision that allows the lowest line array element stacked over a sub to be tilted up or down by as much as 10°, offering better coverage of listeners near the stage. WideLine-8 subs may be used as a base for stacking up to six WideLine-8 elements.
High Frequency Transducer: 1.4" exit, 3" titanium diaphragm, neodymium magnet assembly
Low Frequency Transducer: Dual, 8" woofer, 2.5" voice coil
Nominal Impedance
HF: 16 ohms
MF: 16 ohms
LF: 16 ohms
Continuous Power Capacity
HF: 85 W
MF: 250 W
LF: 250 W
Nominal Coverage: Horizontal: 140°
Connectors: 2 x Neutrik Speakon® NL8 in parallel
Each tri-amplified WideLine-8 element uses a pair of high-power, neodymium magnet, 8" low-frequency drivers. Both cover low frequencies while only one extends into the midrange, thus maintaining horizontal dispersion control at crossover. High frequencies are handled by a premium, 3" diaphragm, neodymium compression driver mounted to QSC's patented, 140° multiple aperture diffraction waveguide. WideLine signature wide coverage delivers a broader stereo image, reduces the need for supplemental fill speakers and allows more placement options.
The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source with minimal discontinuities between adjacent elements resulting in greatly reduced destructive interaction.
Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and coated in an environmentally friendly, waterborne polymer finish that is field repairable. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminum.
An elegantly simple 4-point suspension system combined with lightweight, compact size and excellent handling ergonomics mean that a one person crew can easily deploy an array. A single AF3082-L array frame suspends up to twelve line array elements or up to twelve line array elements plus four subwoofers. The WideLine-8 system is equally at home in the air or ground stacked.
Special attention is given to ground-stacked applications. The WideLine-8 sub suspension system includes a unique provision that allows the lowest line array element stacked over a sub to be tilted up or down by as much as 10°, offering better coverage of listeners near the stage. WideLine-8 subs may be used as a base for stacking up to six WideLine-8 elements.
High Frequency Transducer: 1.4" exit, 3" titanium diaphragm, neodymium magnet assembly
Low Frequency Transducer: Dual, 8" woofer, 2.5" voice coil
Nominal Impedance
HF: 16 ohms
MF: 16 ohms
LF: 16 ohms
Continuous Power Capacity
HF: 85 W
MF: 250 W
LF: 250 W
Nominal Coverage: Horizontal: 140°
Connectors: 2 x Neutrik Speakon® NL8 in parallel
Product Features
- Extraordinarily compact (only 20" / 508 mm wide) and lightweight (38 lbs / 17.2 kg)
- High acoustic output (133 dB SPL peak)
- Wide 140° horizontal coverage
- High power, 8" neodymium LF / MF drivers provide low-frequency extension to 62 Hz without subwoofers
- 3" diaphragm compression driver on QSC's patented 140° multiple diffraction aperture waveguide (Patent No. 7,177,437)
- Patented (D576,660) side-mounted vent ports designed for double duty as handles
- Simple, easy-to-use rigging system supports arrays of up to 12 units with 10:1 design factor
- Flexible ground stack capability
- Fully supported in EASE and EASE Focus acoustic software
