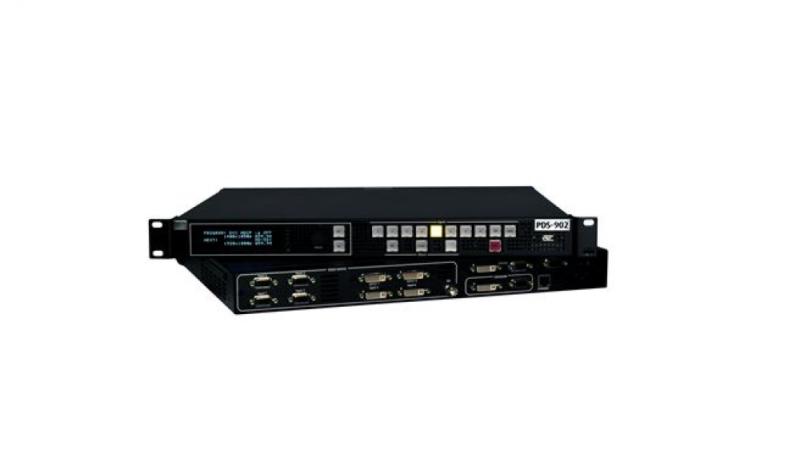

Barco PDS-902PDS-902 3G Digital SW 1RU
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description
Cost-effective, high-quality screen switching for live events
- Simple setup and operation
- Excellent price/performance ratio
- Simultaneous program output via DVI and analog connectors
The PDS series is designed to meet today's requirements for a high-quality, easy-to-use and fast seamless switcher with more digital inputs at an affordable price. Thanks to its straightforward setup and operation the PDS is a perfect fit for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities and fixed installations.
EDID 1.3 specification supported
The PDS-902 3G model features four DVI-I inputs with full HDCP 1.0 support, one 3G/HD/SD SDI and four universal analog inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to three images that can be used as a LOGO source during the presentation. Built-in test patterns are also provided.
Preview output
The PDS-902 3G offers simultaneous program output via the DVI and analog connectors. It also include an SDI output supporting SD/HD/3G rates and BarcoLink for easy connection to your Barco projectors. In addition, the switcher offers a preview output that can be set at different resolution than the program output. Users have the option of displaying one of three signals on the preview output program, preview or test pattern.
